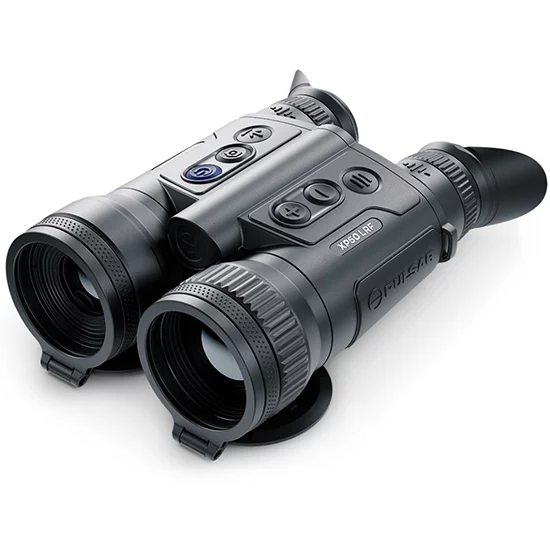

PULSAR MERGER LRF XP50 THERMAL BINOS

Merger LRF thermal imaging binoculars are built with the classic design of daytime binoculars. With a small form factor these thermal imaging binoculars fit comfortably in the hand but still offer appealing external aesthetics and exemplary ergonomics. The six function buttons are placed in the comfort access zone and the most used digital device functions are activated with a single touch. – Main – Sensor 640×480 @ 17 µm (NETD <25 mK) – Objective lens F50/1.0 – Magnification x 2.5-20 (x8 zoom) – Field of view (HxV) degrees / m@100m 12.4×9.3 / 21.8×16.3 – Detection range m 1800 – Sensor – Type uncooled – Resolution pixels 640×480 – Pixel pitch µm 17 – NETD mK <25 – Frame rate Hz 50 – Optics – Objective lens F50/1.0 – Magnification x 2.5-20 – Field of view (HxV) degrees / m @ 100 m 12.4×9.3 / 21.8×16.3 – Interpupillary distance adjustment mm 56-71 – Eye relief mm 15 – Display – Type AMOLED HD – Resolution pixels 1024×768 – Range Performance – Detection range m 1800 – Laser Rangefinder – Safety class for laser equipment according to IEC 60825-1:2014 1 – Wavelength nm 905 – Max. measuring range m 1000 – Measurement accuracy m ± 1 – Video Recorder – Video / photo resolution pixel 1024×768 – Video / photo format .mp4 / .jpg – Built-in memory GB 16 – Wi-Fi Wireless Protocol Wi-Fi – Wireless Standard IEEE 802.11 b/g/n/ac (WPA) – Frequency GHz 2.4 / 5 – Environmental Characteristics – Degree of protection IP code (IEC60529) IP-7 (waterproof) – Operating temperature range -25-+50 – Connections and Compatibilities – Mount type 1/4 socket – Supported Application Stream Vision 2 – Power Supply – Output voltage V 3.7 – Battery type Dual Li-Ion Power System: 3.2 A·h Changeable Battery (external) / 4.0 A·h Battery (internal) – Capacity mAh 3200 (external) + 4000 (internal) – Operating time on battery pack (at t=22°C) h * 10 – External power supply V 5 (USB Type C) – Weight & Size – Body material Magnesium alloy – Dimensions mm 196x143x76 – Weight kg 0.8
